Rainwater Harvesting Tanks
Common Tank Sizes
| Gallons | Diameter | Height |
|---|---|---|
| 10,473 15,709 |
15′ 5″ | 7′ 6″ 11′ 3″ |
| 15,081 22,621 |
18′ 6″ | 7′ 6″ 11′ 3″ |
| 20,527 31,790 |
21′ 7″ | 7′ 6″ 11′ 3″ |
| 26,810 40,216 |
24′ 8″ | 7′ 6″ 11′ 3″ |
| 33,932 50,898 67,864 |
27′ 9″ | 7′ 6″ 11′ 3″ 15′ 0″ |
| 62,837 83,783 104,729 |
30′ 10″ | 11′ 3″ 15′ 0″ 18′ 9” |
| 76,033 101,377 126,721 |
33′ 11″ | 11′ 3″ 15′ 0″ 18′ 9″ |
| 121,000 151,000 |
37′ 0″ | 15′ 0″ 18′ 9″ |

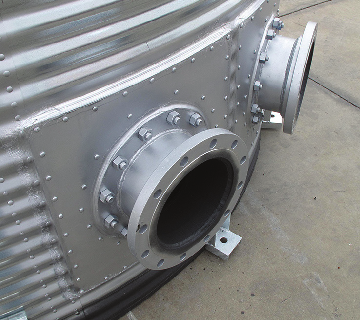

Many additional tank sizes available
American Tank specializes in Corrugated Steel, self-anchoring filed erected tanks that meet California Building Code (CBC), NFPA-22 Standards and have CA Wet-Stamped Engineering. Many of our tanks are designed to be installed on a gravel ring foundation and make anchors or an expensive concrete foundation completely unnecessary.
Common
Storage
Applications
Fire Protection (NFPA-22)
Drinking Water (NSF-61)
Waste Water
Rainwater Harvesting/Irrigation
Over the past 100 years, hand riveted corrugated steel tanks have proven themselves as the preferred water storage choice for wineries, commercial, residential, and industrial applications.
Our tanks are professionally engineered to meet all Building, Health, and Fire Code Requirements including NSF 61 and NFPA 22, with site specific Seismic, Wind, and Deck Loads as mandated by the CBC, UBC and IBC building codes.
Our mill galvanized tanks are factory coated providing a multi-layer system of mechanical and cathodic protection. We offer tanks with interior options, Farbertite, Powder Coatings or heavy duty Industa-Liner liners. Classic Corrugated tanks have one of the best engineered life-cycle cost values in the industry.
